Mill head for more compression (do not use this option for pump gas or head gasket failures will happen)
Add 2 additional .009 head gaskets to stack and reduce compression
In stock: 1 available
Product Details

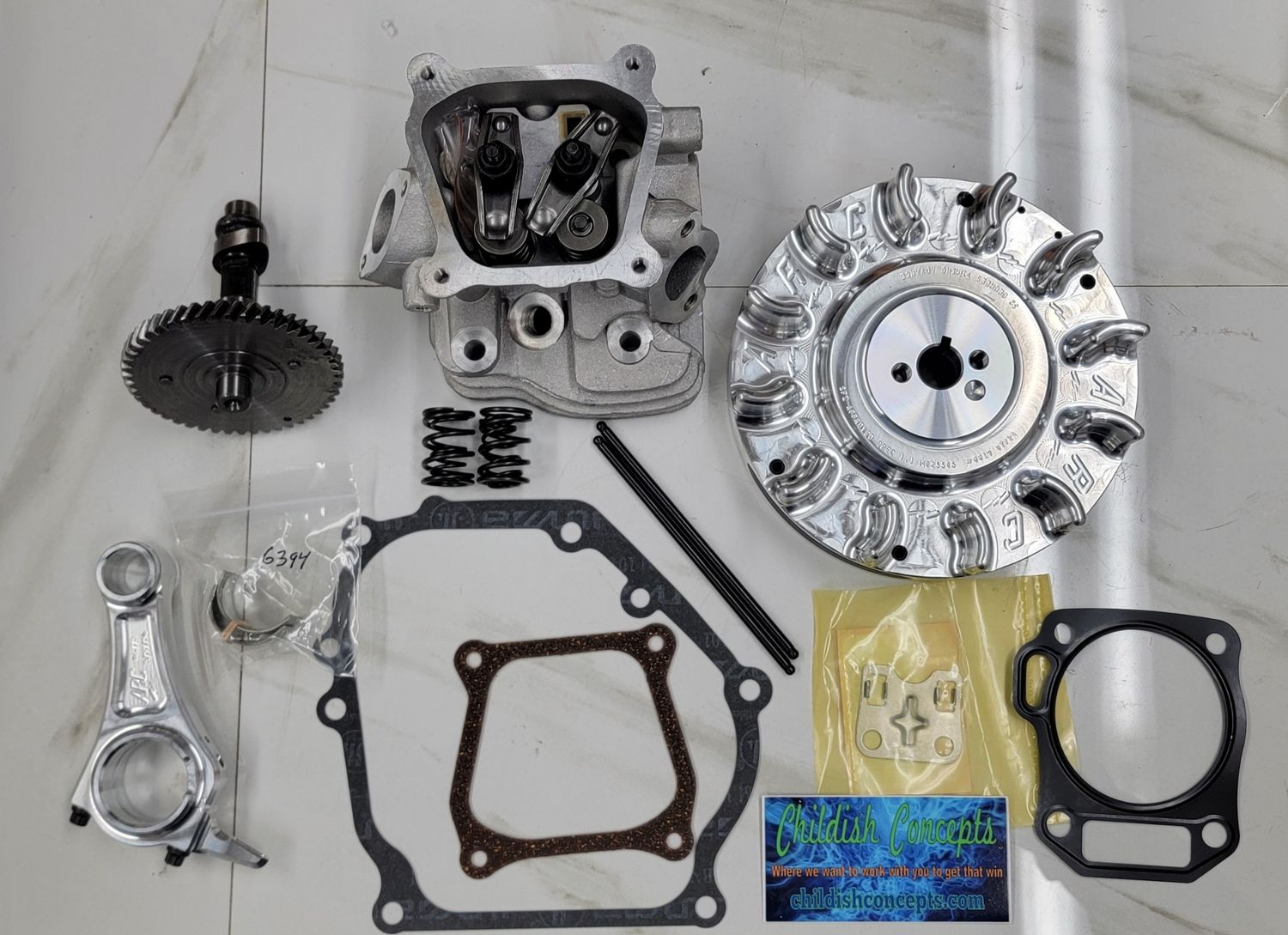

The Shredder 224 (non hemi) CS Build Kit comes ready to assemble with these parts
This kit will easily hit 8000 rpm and work very well with a clutch or Juggernaut style converter while shredding the back yard and throwing dirt roosters all over your little brother if you want to.
Shredder 16cc head complete with 1.2 heavy duty rockers, 40 pound dual springs set to 30 pounds of seat as well as the 22 pound stock springs (dual springs are installed)
Oversized stock style guide plate to fit the 3/16 chromoly pushrods
3/16 chromoly 5.260 long pushrods
Dyno CS 224/236 .265 lift cam (this cam will easily allow you to hit 8000 plus rpm)
6773 ARC billet rod
Side gasket
.009 thick head gasket
Valve cover gasket
ARC 6619 billet flywheel
With this combo and your stock dished piston you would land at very close to 10.38:1 compression on a 224 cc engine so premium fuel will be recommended
Note: compression ratios (pictured) with .009 or 3) stacked .009 for a total thickness of .027 head gasket option. .009 will push your compression limits on 93 octane (this combo will take it but she will be at the edge)
Still looking for more and want a custom head? Yes, we can help with that to. Feel free to check out our custom head selection or ask.
